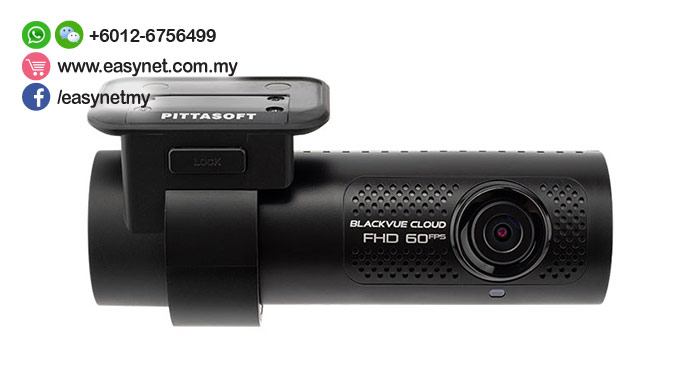

Blackvue DR750X-1CH Full HD single-channel SONY STARVIS™, Wifi, Cloud, GPS, Parking Mode Car DVR Safety Recorder Camera Dashcam
*1 YEAR WARRANTY*
Performance and Functionality
Sony STARVIS™ sensor with Full HD 1080p at up to 60 frames per second.
Record fluid videos at a wide 139° view angle.
The STARVIS image sensor ensures that your dashcam captures critical details even in low light.
Native Parking Mode with built-in voltage monitor to protect your vehicle battery (hardwiring cable included).
With the free BlackVue Cloud service, check on your car from anywhere, anytime.
GPS, Wi-Fi and Optional LTE
GPS: visualize the location of your vehicle on the map during video playback and overlay speed on videos (can be hidden in settings).
Wi-Fi: lets you connect to your BlackVue with a smartphone or tablet. Wi-Fi also lets your BlackVue connect to BlackVue Cloud via any home or mobile Wi-Fi hotspot (router).
LTE: connect the optional LTE connectivity module* via the USB port for the best Cloud experience.
(*) SIM card not included.
Built-in Impact & Motion Detection
Automatically tags important files
While driving, your BlackVue detects impacts and sudden changes in speed. While parked, it also detects movements*.
Use the filters in the BlackVue App and Viewer
All videos are tagged (Normal, Event, Parking Mode motion or time lapse), so that you can easily find the relevant ones in the BlackVue Viewer for Windows and Mac OS or the BlackVue App for Android and iOS.
Programmable proximity sensor
Toggle audio recording ON and OFF by simply waving your hand in front of it. The sensor can also be configured to trigger Manual Event videos in the settings.
Turn Wi-Fi ON/OFF with the push of a button. All actions are confirmed by a voice prompt.
Connect to your BlackVue anytime, from anywhere in the world with BlackVue Cloud.
Enjoy Remote Live View and Push Notifications to your phone.
Back up important videos to the Cloud remotely.
Play and download videos from your dashcam’s memory or the Cloud from anywhere.
Check the BlackVue Cloud page for more information.
Native Parking Mode
Hardwiring cable included
DR750X Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR750X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.
High Frame Rate for Extra Fluidity
The advantage of 60FPS video capture
The camera records extra fluid videos at 60 frames per second, keeping all details sharp even in fast action. With 60fps, motion blur is much reduced compared to 30fps. That means your BlackVue can better capture details–like license plates–even in fast-moving objects.
Note 1: the higher the image quality setting, the higher the bitrate and the bigger the file size. A bigger size will increase the time necessary to transfer a video file over Wi-Fi.
Note 2: Remote Live View using BlackVue Cloud is not affected by the image quality and framerate settings.
LTE Connectivity Module (Optional)
The CM100LTE connects to your compatible BlackVue X Series dashcam to provide easy 4G LTE connectivity. All you need is a valid Nano SIM card. The CM100LTE connects via the USB port of your dashcam. Your BlackVue powers the module and automatically accesses the Cloud when the module is plugged in.
Note: when purchasing, make sure the CM100LTE you choose is compatible with your mobile carrier’s network. Not compatible with DR590X Series.
Intelligent Parking Mode
Protect your car when you are away.
PARKING MODE BATTERIES (Optional)
|Highlights||Full HD, Cloud, Wi-Fi, GPS, Sony Sensor, External LTE Module|
|Product Dimensions||W 118.5 mm (4.67″) x H 36 mm (1.42″) / 103 g (3.63 oz)|
|Memory Support||microSD card up to 256GB|
|Recording Modes||– Normal,
– Event (Impact Detection / Speed Limit / Manual),
– Parking Mode (Impact+Region-based Motion Detection, Timelapse+Events)
|Parking Mode||YES (with 3-wire hardwiring cable – included)|
|Parking Mode Event Voice Notifications||YES|
|Imaging Sensor||Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)|
|Viewing Angle||Diagonal 139°, Horizontal 116°, Vertical 61°|
|Resolution Frame Rate||Full HD @60fps
* Frame rate may vary during Wi-Fi streaming
|Video Codec||H.264 (AVC)|
|Image Quality and Bitrate Front/Rear||Highest (Extreme): 25 Mbps
Highest: 12 Mbps
High: 10 Mbps
Normal: 8 Mbps
|Format Free||YES (Adaptive)|
|Event File Overwrite Protection||YES (up to 50)|
|SD Card Failure Alert||YES|
|Video File Extension||MP4|
|Wi-Fi||Built-in (802.11 b.g.n)|
|GPS||Built-in (Dual Band : GPS, GLONASS)|
|Impact Sensor||3-Axis Acceleration Sensor|
|LED Indicators||Recording LED, GPS/BT LED, LTE/Wi-Fi LED, Front Security LED, Proximity Sensing indicator LED|
|Button||Button: Wi-Fi ON/OFF (Tap)
Proximity sensor: Mic ON/OFF / Trigger Manual Recording / OFF (configurable)
|Operation Temperature||-20 °C − 85 °C (-4 °F − 185 °F)|
|Storage Temperature||-20 °C − 90 °C (-4 °F − 194 °F )|
|High Temp Cut Off||Approx. 85 °C (185 °F)|
|Backup Battery||Built-in supercapacitor|
|Input Power||DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)|
|Power Consumption Hour||Normal Mode (WiFi On / GPS On) : 275mA / hour
Normal Mode (WiFi Off / GPS On) : 240mA / hour
Parking Mode (WiFi On / GPS Off) : 220mA / hour
Parking Mode (WiFi Off / GPS Off) : 185mA / hour
* Actual power consumption may vary depending on use conditions and environment
|Certifications||FCC, CE, RoHS, Telec, WEEE, IC|
|Others||Adaptive Format-Free File Management System|
